◆先进的中走丝专家系统，全面支持国际通用G代码
◆Advanced middle wire expert system, fully support international G code
◆优秀的NC编程功能，切割程序从CAD、CAXA等直接转换
◆Excellent NC programming function, cutting program directly converts from CAD, CAXA, etc.
◆交流伺服电机直接驱动，全数字高频脉冲电源超细切割
◆AC servo motor direct drive, all digital high frequency pulse power supply ultra-fine cutting
◆线架采用C型结构 钢性好，适合于小批量、多品种零件的加工，减少模具制作费用，缩短生产周期
◆The wire frame adopts Ctype structure. It has good steel properties and is suitable for processing small batches and multivariety parts, reducing mold production costs and shortening production cycle.
◆加工粉末冶金模、镶拼型腔模、拉丝模、波纹板成型模，加工硬质材料、切割薄片，切割贵重金属材料
◆Processing powder metallurgy mold, inserting cavity mold, drawing die, corrugated plate forming die, processing hard materials, cutting sheets, cutting precious metal materials

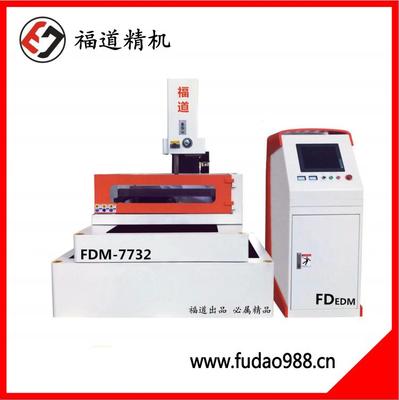

机床数据/型号 Machine data / model | FDDK7732C | FDDK7740C | FDDK7750C | FDDK7763C |
工作台尺寸 working desk size | 755×470mm | 850×600mm | 970×680mm | 1140×750mm |
工作台行程 Workbench trip | 320×400mm | 400×500mm | 500×630mm | 630×800mm |
**加工厚度 Maximum processing thickness | 280mm（300mm） | 280mm（350mm） | 300mm（500mm） | 300mm（500mm） |
**工件重量 Maximum workpiece weight | 300kg | 500kg | 800kg | 1500kg |
机床重量 Machine weight | 2300kg | 2550kg | 3150kg | 3850kg |
外形尺寸 Dimensions | 1600×1200×1750 | 1700×1400×1750 | 1900×1600×1800 | 2700×1750×1800 |
**加工锥度 Maximum processing taper | 6° |
**切割速度 Cutting speed | ≥180m㎡/min |
**表面粗糙度 Optimum surface roughness | Ra≤1.0um |
电极丝直径 Wire diameter | 0.10-0.25mm |
工作台移动脉冲当量 Workbench moving pulse equivalent | 0.001mm |
加工精度 Precision | ±0.005mm |
备注：由于产品不断改进，本机床外观及技术参数仅供参考，实际外观及技术参数均以订货时为准。
Remarks: The company's machine tools are continuously researched and improved. If the appearance and technical parameters are for reference only, the actual appearance technical parameters are subject to the order.
